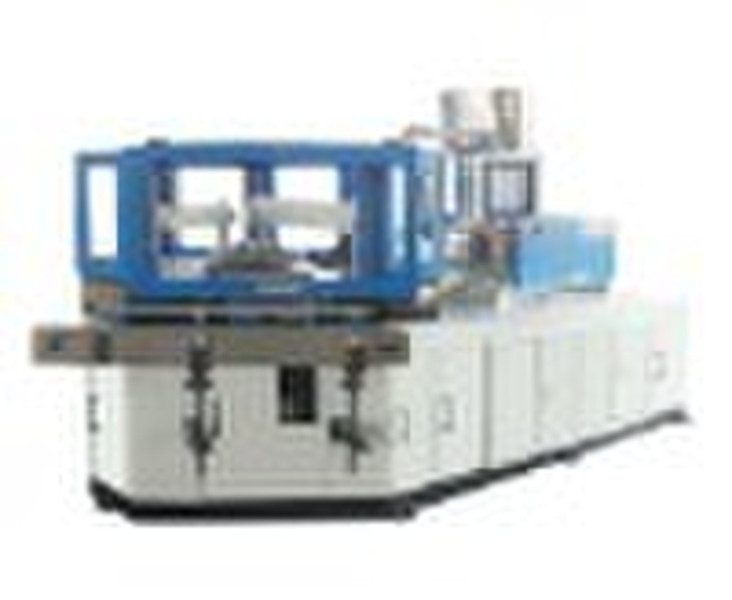

IBS Series Injection Blow Machines

injection blow molding machines Products Application Wide mouth food, cosmetic, household product containers. Light industrial products. Clean room applications. Complex-shaped containers. Small bottles with high cavitations. Containers with strictest weight, volume and thickness requirement. Process Three stages on a rotary indexing table Injection,Blow,Extraction. Products Features The machine provides fast molding performance without connecting lines on bottle bottom or side. Maximum uniformity of bottleweight, thickness and volume. Bottle body, neck and mouth can be varied to meet specific requirements. Suitable for various materials, such as PE, PP, PS, PC, PETG, PMMA, PET etc,. Products Technoliges Advanced control systems. Oil-free pneumatic system. Oil-free working table and indexing table. Internal and external cooling of core rod tips. Byspecial high precision numerical control equipment, fully guarantee the quality of bottle product. Protection devices designed to enable maximum accessibility to the mould area. Products Specifications Model YLD-IBS45 Screw diameter mm 45 (PS) Effective Injection g 120 Injecting Clamping force kg.f 44300 Blow clamping force kg.f 7030 Max. Pressure kg.f 140 Mold length mm 580 Mold width mm 390 Tower lifting height mm 70 Heating power kW 22 Motor Power kW 16 Length mm 4000 Width mm 1350 Height mm 1530 Weight kg 8000
